R095 Commercial & Industrial Walk-in Cold Room / Freezer Storage Project Independent Engineer Team

FOB Reference Price:Get Latest Price
$5,300.00 - $18,600.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
Cold Room / Freezer Room
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Temperature:
-25~10
Power(W):
2HP-12HP
Dimension(L*W*H):
Customize
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Field installation, commissioning and training, Overseas third-party support available
Place of Origin:
Guangdong, China
Brand Name:
Furnotel
Voltage:
220V/380V
Weight:
Depends on dimension
Certification:
Cold Room CE
Insulation Panel:
33.44sq.m/75mm
Cooling System:
Cold Room Compressor
Door Size:
0.8*1.8m, customize possible
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details

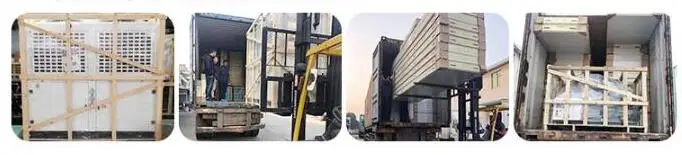

Wooden Package For Cold Room / Freezer Room
Port
Guangzhou



Product Description

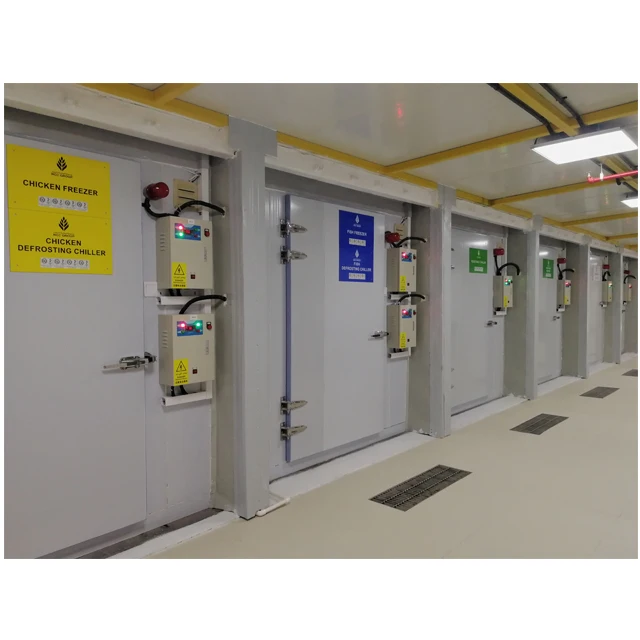

 Commercial & Industrial Cold Room

1)Energy saving,High efficiency
2)Assembly model, easy transport & installe
3)CE & Rohs



Item No.
Product Name
Specification
R095-1
10m³ Refrigerator Cold Room
Outside Dimension:2*2*2.2m
Inside Dimension:1.8*1.8*2m
Temperature:0~10°C
Volume:10m³
Voltage: 220V
Insulation Panel:33.44sq.m/75mm
Cooling System: 2HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-2
20m³ Refrigerator Cold Room
Outside Dimension:3.0*2.7*2.5m
Inside Dimension:2.8*2.5*2.2m
Temperature:0~10°C
Volume:20m³
Voltage: 220V
Insulation Panel:53.04sq.m/75mm
Cooling System: 2HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-3
30m³ Refrigerator Cold Room
Outside Dimension:4*3*2.5m
Inside Dimension:2.8*2.8*2.2m
Temperature:0~10°C
Volume:30m³
Voltage: 220V
Insulation Panel:70sq.m/75mm
Cooling System: 2HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-4
40m³ Refrigerator Cold Room
Outside Dimension:4*4*2.5m
Inside Dimension:3.8*2.5*2.2m
Temperature:0~10°C
Volume:40m³
Voltage:380V
Insulation Panel:85.04sq.m/75mm
Cooling System: 3HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-5
50m³ Refrigerator Cold Room
Outside Dimension:5*4*2.5m
Inside Dimension:4.8*2.5*2.2m
Temperature:0~10°C
Volume:50m³
Voltage: 380V
Insulation Panel:85.04sq.m/75mm
Cooling System:4HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-6
60m³ Refrigerator Cold Room
Outside Dimension:6*4*2.5m
Inside Dimension:5.8*2.5*2.2m
Temperature:0~10°C
Volume:60m³
Voltage: 380V
Insulation Panel:85.04sq.m/75mm
Cooling System:5HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-770m³ Refrigerator Cold Room

Outside Dimension:5.6*5*2.5m
Inside Dimension:5.4*4.8*2.2m
Temperature:0~10°C
Volume:70m³
Voltage: 380V
Insulation Panel:85.04sq.m/75mm
Cooling System:5HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature

R095-880m³ Refrigerator Cold RoomOutside Dimension:6.4*5*2.5m
Inside Dimension:6.2*4.8*2.2m
Temperature:0~10°C
Volume:80m³
Voltage:380V
Insulation Panel:85.04sq.m/75mm
Cooling System:5HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-990m³ Refrigerator Cold RoomOutside Dimension:6*6*2.5m
Inside Dimension:5.8*5.8*2.2m
Temperature:0~10°C
Volume:90m³
Voltage:380V
Insulation Panel:85.04sq.m/75mm
Cooling System:6HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1010m³ Freezer Cold RoomOutside Dimension:2*2*2.2m
Inside Dimension:1.8*1.8*2m
Temperature:-18°C
Volume:10m³
Voltage: 220V
Insulation Panel:33.44sq.m/100mm
Cooling System: 2HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1120m³ Freezer Cold RoomOutside Dimension:3.0*2.7*2.5m
Inside Dimension:2.8*2.5*2.2m
Temperature:-18°C
Volume:20m³
Voltage:380V
Insulation Panel:53.04sq.m/100mm
Cooling System: 3HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1240m³ Freezer Cold RoomOutside Dimension:4*3*2.5m
Inside Dimension:2.8*2.8*2.2m
Temperature:-18°C
Volume:30m³
Voltage:380V
Insulation Panel:70sq.m/100mm
Cooling System:4HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1350m³ Freezer Cold RoomOutside Dimension:4*4*2.5m
Inside Dimension:3.8*2.5*2.2m
Temperature:-18°C
Volume:40m³
Voltage:380V
Insulation Panel:85.04sq.m/100mm
Cooling System: 5HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1450m³ Freezer Cold RoomOutside Dimension:5*4*2.5m
Inside Dimension:4.8*2.5*2.2m
Temperature:-18°C
Volume:50m³
Voltage:380V
Insulation Panel:85.04sq.m/100mm
Cooling System:6HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1560m³ Freezer Cold RoomOutside Dimension:6*4*2.5m
Inside Dimension:5.8*2.5*2.2m
Temperature:-18°C
Volume:60m³
Voltage:380V
Insulation Panel:85.04sq.m/100mm
Cooling System:8HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1670m³ Freezer Cold RoomOutside Dimension:5.6*5*2.5m
Inside Dimension:5.4*4.8*2.2m
Temperature:-18°C
Volume:70m³
Voltage:380V
Insulation Panel:85.04sq.m/100mm
Cooling System:8HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1780m³ Freezer Cold RoomOutside Dimension:6.4*5*2.5m
Inside Dimension:6.2*4.8*2.2m
Temperature:-18°C
Volume:80m³
Voltage:380V
Insulation Panel:85.04sq.m/100mm
Cooling System:10HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature
R095-1890m³ Freezer Cold RoomOutside Dimension:6*6*2.5m
Inside Dimension:5.8*5.8*2.2m
Temperature:-18°C
Volume:90m³
Voltage:380V
Insulation Panel:85.04sq.m/100mm
Cooling System:12HP EMERSON Copeland
Door Size:0.8*1.8m
Adaptable Condition:Normal Temperature



Details:

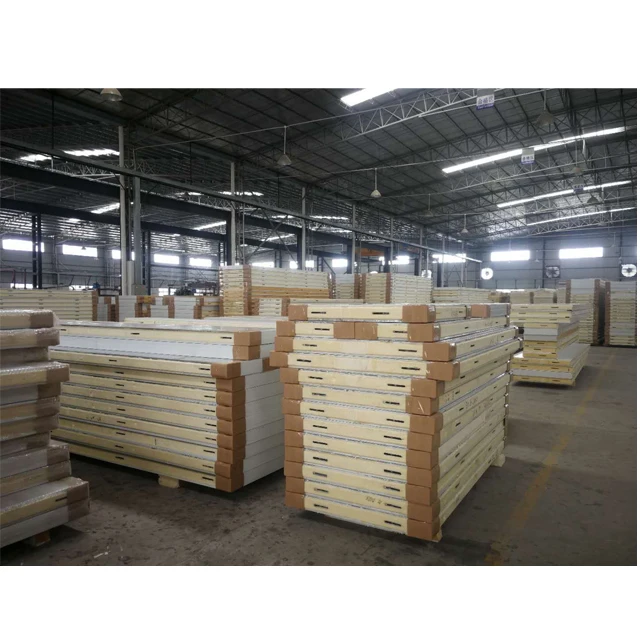

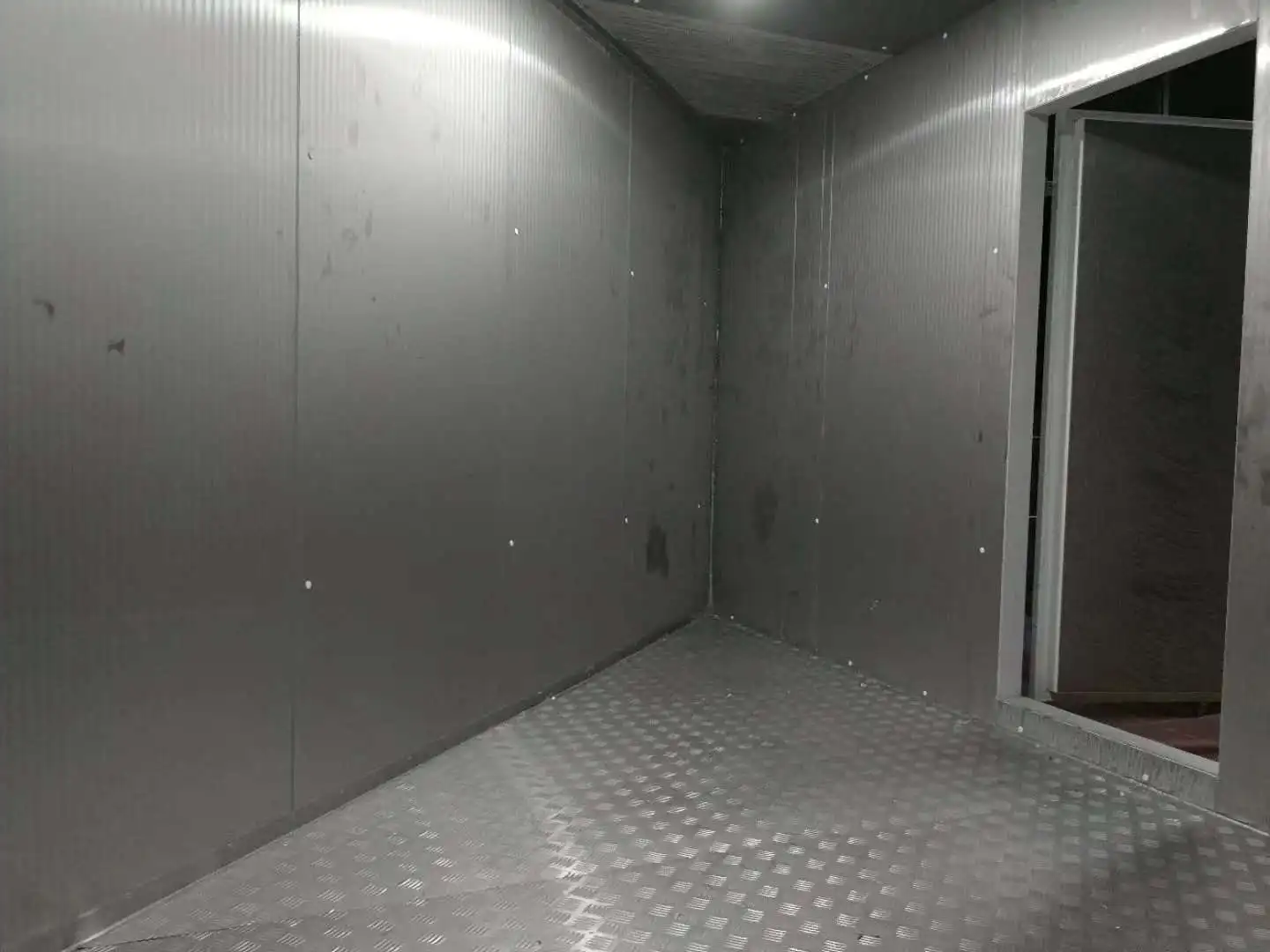

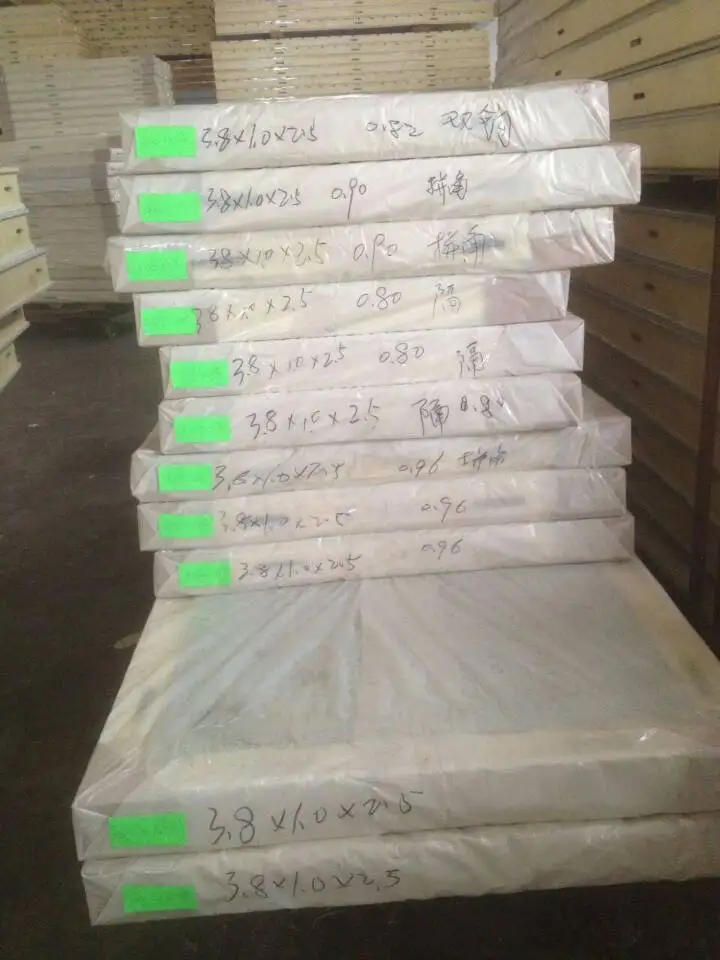

1.The Cold storage use 125mm double-side color steel PU panel.
2.Emerson's Copeland Scroll compressor,power 5HP,380V,50Hz
3.Cold storage Specification:
4.Environmental protection R404a refrigerants.
Temperature -18°C & 0~10°C adjustable.
No.Description Specification
1Double-side colored steel PU panels125mm
4Double side color steel hand door800*1800mm
5High Temperature Condenser unit,

2HP,220V/380V,50Hz
Cooling System
6EvaporatorDL20
7Expansion ValveEmerson
9Isulation Copper PipingRound-trip
10Electrical CabinetStandard
11RefrigerantR404A

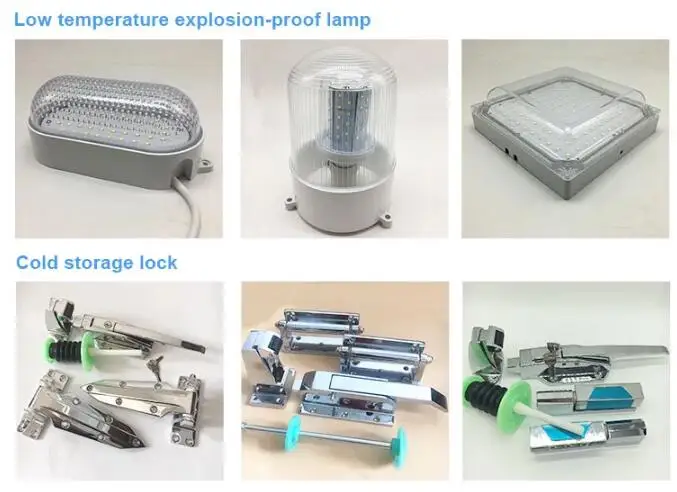

12Moisture-proof cold lightlighting
13Accessories(hardware, manual stabilizer,balance boom,tem-balance window,) Fittings

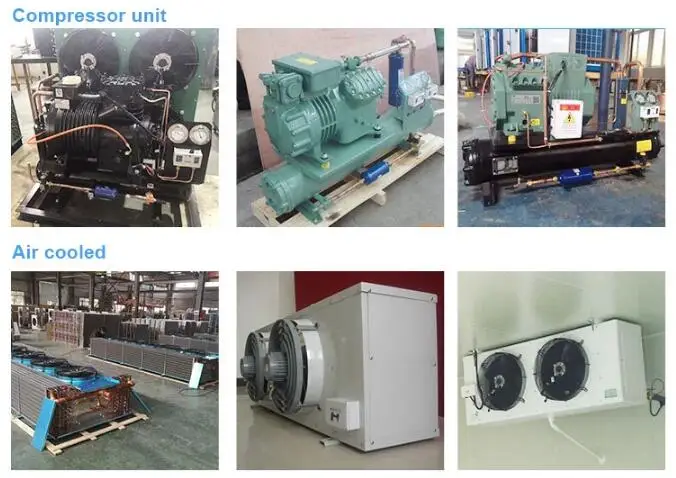

Cooling machine integration component
1Copeland semi-hermetic compressor.
2Hi-thread condenser
3High-thread series of low-temperature DL/DD/DJ evaporator
4Emerson high-end expansion valve. (Series expansion valve fot freezer, capillary cut for cooler)
5Full computer control system (automatic control).
6Apan Saginomiya/ Shangheng solenoid valve (a set of solenoid valve has two units for high temperature unit: running - cream filling; Freezing Unit has an addition of liquid spray).
7Rotor with 4 sets of high-blower.
8LG electrical components.
9Emerson dry filter, pressure relay protection, the protection of high-temperature compressor temperature control (temperature liquid spray for freezer).
10Condensate water processor + cooper piping tube + frozen oil + cooling of the refrigerant 404A.

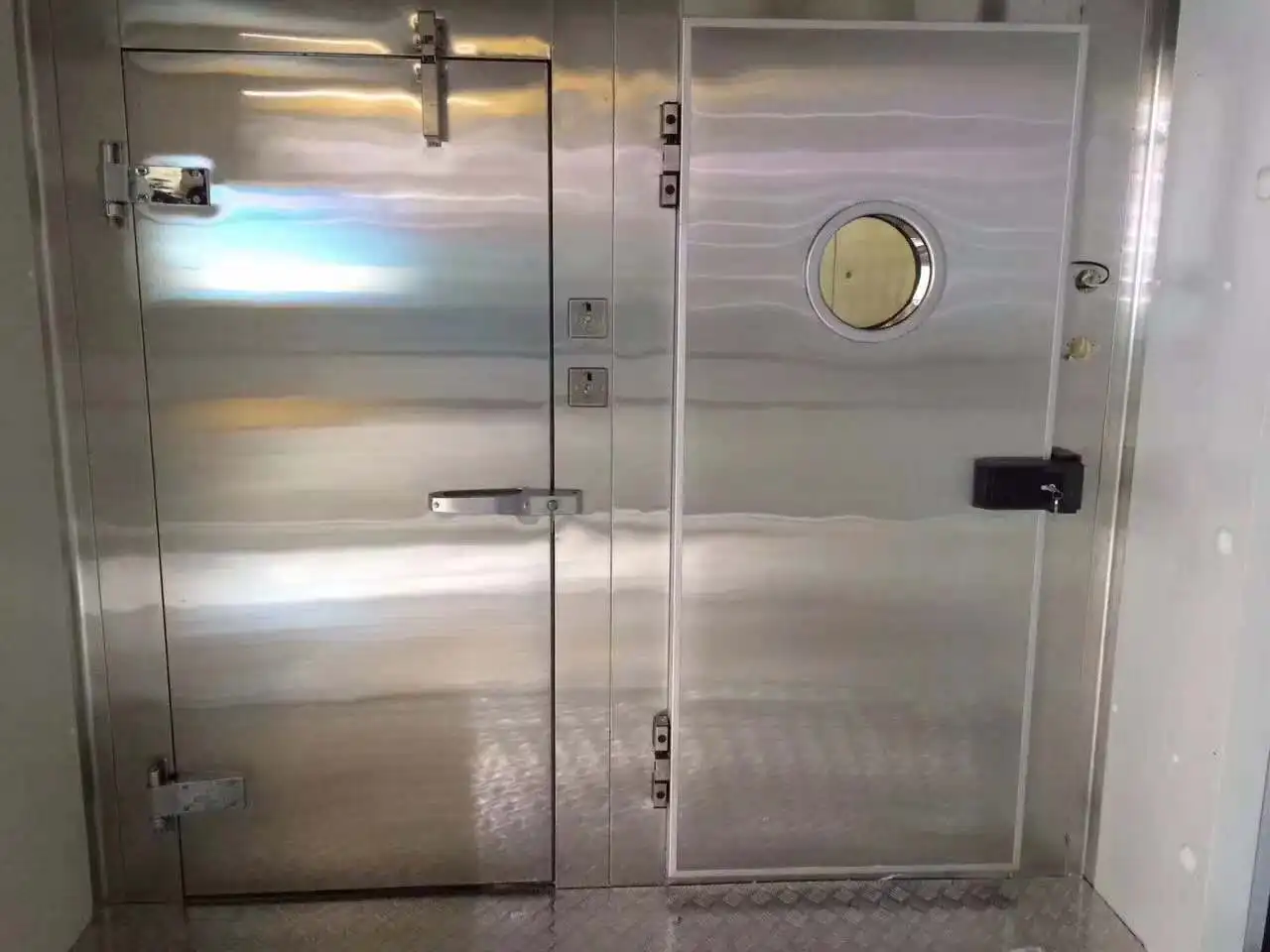

11The doors of the cold room have safe cock which is help to open them from inside

New generation refrigeration.

Use cooling system integration, UN-INSTALLATION.
easy move,easy use, energy-saving, high-efficient!!!
